Products of Oelmann Elektronik

Equipment and software for professional mobile communications

PRODUCT CATALOG, PDF PORTABLES MATRIX, PDF

Pagers POCSAG, TETRA, GSM, WiFi

LX8

LX8

Modular and versatile

  • POCSAG 4-ch scan
  • GSM/LTE, WiFi, GPS, BT, man-down, IOS beacons*
  • Alarm top button*
  • RGB backlight
  • Li-Ion battery
  • USB
  • IP54
  • BOS Certified

*Optional

PFS141

PFS141

Stationary industrial

  • POCSAG 4-ch scan
  • 8 relay outputs
  • External antenna
  • RS-232 serial port
  • DIN rail mounting

Updated 2020

TETRA Pager

TETRA Pager

Two-way professional

  • TETRA messaging
  • 380…430 MHz, 450…470MHz
  • GPS receiver*
  • Man–down sensor*
  • Inductive beacon detector*
  • Alarm top-side button*
  • Tear-Off Alarm contact*
  • RGB backlight
  • Li-Ion battery
  • USB
  • IP54
  • ATEX*

*Optional

GD263

GD263

Wireless display

POCSAG, TETRA, GSM, WiFi, 5-Tonfolge, FMS (TR-BOS)

  • 20 chars 70mm height, 128x8px per one line
  • 1380x100x33mm one line device; optional up to 4 lines
  • Longer text can scroll / tick
  • IP40, aluminum die-cast housing
  • Output relay contact**
  • USB

*By request
**Optional

Accessories for the pagers and smartphones

Carrying accessories

Carrying accessories

Secure fastened, accessible and audible

Everything to have the pager well fastened, always easily accessible and visible, and its signal is always audible loud and clear.

Holsters, leather and nylon weatherproof cases with magnetic closure, simple belt loop or KlickFast system.

Desktop chargers

Chargers and cradles

Always ready and always in touch

  • Original chargers and desktop I/O cradles.
  • Optional external antenna connector and I/O relay contacts.
  • Viper series battery 3x-slot charger

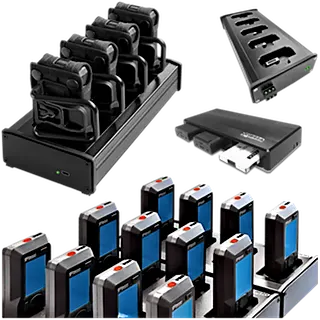

Multicharger

Multi-chargers

Professional storage / charging racks

  • For LX2, LX4, LX7, LX8, TETRA, WiFi pagers, SME900.
  • 12...30VDC.
  • Power fault alarm relay out.
  • Options: 110...240VAC power supply, wall–mount bracket, DC power and chain-jumpers cables.

Smartphones with POCSAG / IOS beacon detectors built-in

SME900

SME900

Rugged, professional full featured Android portable with POCSAG, IOS beacon decoder on board.

Legacy product

SME920

SME920

Full featured Android rugged portable with POCSAG, IOS beacon decoder on board.

SME950

SME950

Rugged and compact professional full featured Android portable with POCSAG, IOS beacon decoder on board.

Legacy product

Base stations, desktop consoles, gateways and complete systems

IS340

IS340

POCSAG IP-base station

  • POCSAG receiving and transmission
  • TX/RX redundancy
  • Alarm relays I/O
  • Master/remote BS or standalone versatile repeater
  • German BOS approved
PRS34x

PRS34x Series

POCSAG base stations

  • POCSAG transmission, receiving and repeating
  • Alarm relays / opto inputs
  • Serial/ESPA, IP, or standalone POCSAG versatile store–forward repeater.
PRS34x

NEN Kit

A compact complete solution for the silent wireless alarm systems

  • POCSAG UFH / VHF
  • LX7 super pagers
  • LX7 multi-charger
  • ESPA IN/OUT
  • Fire alarm external button
  • Alarm I/O
  • Battery power in case of a main power failure
  • IP-web configuration and monitoring
  • NEN 2575*

*For authorized partners

SIRIUS system

SIRIUS Paging

Complete messaging systems

Digital messaging and paging system with full featured POCSAG or TETRA digital paging base stations, repeaters and software.

  • Interconnection to POCSAG, GSM/LTE, TETRA, DMR, WiFi, Ethernet.
  • On-air* base stations connected.
  • Unified Oelmann SIRIUS software suite.

*Oelmann SIRIUS protocol

TB400T

TB-400T

TETRA IP-base station

Self-contained standalone system, remote BS or in sub-module add-ons for the existing system.

LTE connected

TB-400 System

PMR voice and data

Complete systems

Digital and analogue DMR, TETRA, MPT professional mobile radio systems and components, tailored to any customer requirements.

Any combinations and design types, including mobile base station options.

TETRA Gateway

TETRA gateway

Universal two-way TETRA voice and data router

Converts TETRA, audio I/O, ESPA, relays/opto-inputs.

  • Genuine Oelmann 3HU 19" rack mounted cabinet.
  • Redundant power supply, AC or DC.

Connects to the TETRA PEI-radio or to TETRA system infrastructure:

  • Access point PEI mode:
    Transceiver module and one DVS-137 IP-channel cards.
  • Infrastructure connection:
    Up to 12 DVS-137 IP-channel cards, ACAPI.
BT-190

BT-190

Desktop PMR digital master phone set

Connection to subscriber radio or to infrastructure as:

  • TETRA PEI / ACAPI
  • MPT1327 ACCESSNET
  • MPT1327 MAP27
  • DMR AIS*
  • VoIP*
  • Raw / Custom protocol*

*By request

No PC required

Location beacons, modules, systems tools and software

IOS Beacon

Inductive beacon

Fast and precise indoor positioning

Compact, simplified, industrial grade universal inductive beacon for the personnel security applications.

  • Standalone. No connection to the dispatcher required, no interaction with the mobile receiver.
  • Independence from third-party radio emission and fields.
  • Various on–air protocols*
  • Flexible power supply scheme.
  • Different antennas type.
  • Chainable.

*Custom protocols on request

Modules

Modules

Smart built-in electronics

Full featured POCSAG, TETRA, GSM, WiFi, indoor location beacons detector and man-down modules, programmable.

Custom and mixed configurations are possible.

Tools

Testing and monitoring

Maintenance tools

  • PS622 POCSAG portable transmitter 68...87.5, 146...174, 430...470MHz.
  • Viper POCSAG Monitor portable receiver.
  • Various portable and stationary POCSAG on-air receiver/monitors and software.
Software

Software

Operational control and monitoring

Software for paging systems, for setting up the parameters of devices, for operational management and monitoring of equipment and systems.

  • SIRIUS/NAG Suite Series
  • PSW LX unified pager programming software
  • TB–400 base stations maintenance / monitoring
  • SME Messenger Series apps
DSE342

BDBOS

Geräte und Lösungen für Digitalfunk der Behörden und Organisation von mit Sicherheitsaufgaben

Devices and interfaces to various subsystems that are part of the German BOS digital radio network.

  • IS340 DAG/DAU
  • DSE342
  • LX Series BOS pager
  • Duplexer von Basisstationen
  • Bidirektionale TETRA-Verstärker, die an einem Antennenmast montiert sind
  • Aktive Funk-HF-Überwachung des Antennenzustands

Custom solutions

Messaging, paging, signaling, data/voice solutions, complete systems

We develop, manufacture, supply a wider range of products and solutions than can be listed here.

Call us about your device or solution demands.

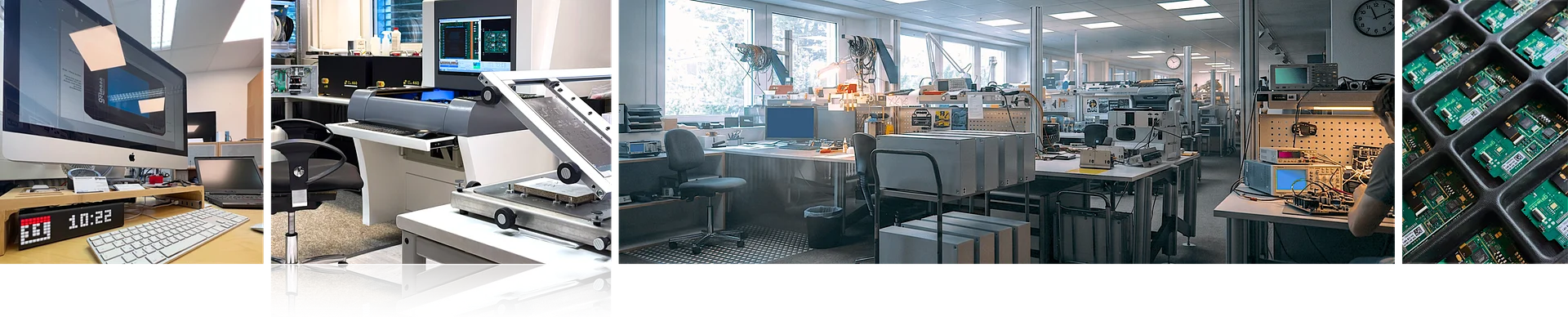

On production:

All the Oelmann products are:
