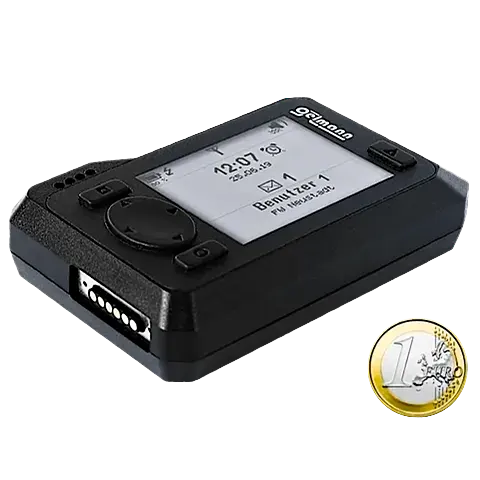

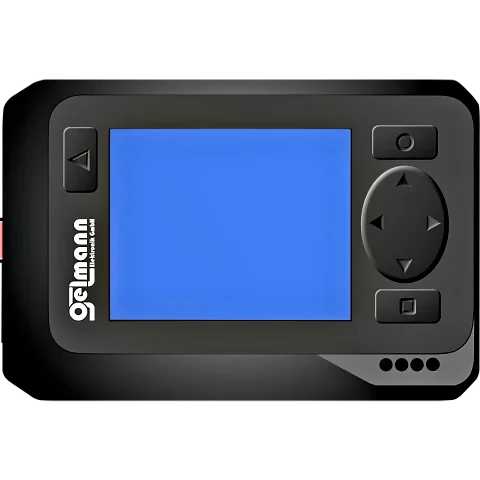

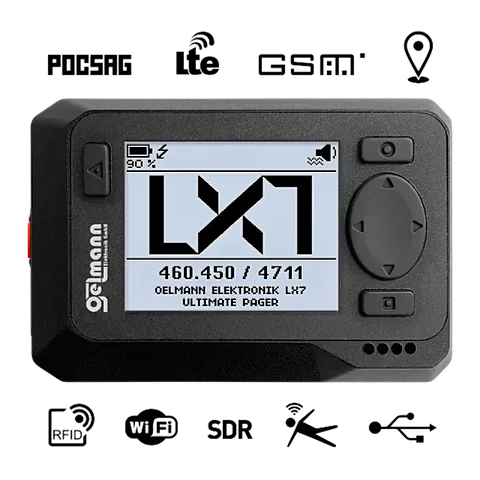

LX7 Pager

LX7 The 21st Century Pager

  • Compact, fast, precise, versatile, IP67
  • POCSAG, LTE, WiFi, GPS, Man–down

Variants｜ Designs｜ Functions｜ Accessories｜ Data｜ Files

All alarms and messages are sent, received, acknowledged, read and accepted

  • Precision paging, alerting and messaging. Standard one–way or multi–channel.
  • Top–notch quality and design, essential hard– and software options.
  • Flexible network and alarm configuration.
  • Original Oelmann hardware and firmware.
  • State, public, municipal services.
  • Industries, transport, oil–and–gas.
  • Hospitals, clinics, healthcare.
  • Personnel security solutions.

Performance, versatility and durability

No microphone or camera. No adverts, apps, games. No software hangs, no wires.
Just the essentials and precise functioning as:

  • An ultra–portable professional digital single or multichannel pager.1
  • A personnel or a vehicle emergency tracker.2, 3
  • A wireless panic button.2, 3
LX7 Key features and options:
  • Feedback to POCSAG receiving, or full featured two–way by LTE cellular or/and a WiFi networks, automatic and manual.2
  • Customisable device user interface and language, as well as sounds, display backlight colours and vibration when wireless alerts and messages are received.
  • GPS / GNSS receiver for outdoor positioning.
  • Man–⁠down and movement detection sensor.
  • Dedicated PANIC alarm button.
  1. Available as a module for customised applications or as a modem with I/O pins and external antennas contacts.
  2. Requires feedback options or product variant with feedback.
  3. Requires location options.

A pager reimagined anew

At Oelmann, our goal with the LX7 Series was to create an ultra–lightweight versatile pager that exceeds expectations. The LX7 utilizes the latest technology to deliver high–grade professional performance, for which our brand is renowned in the paging industry. The LX7 pager offers exceptional build and performance quality, ease of use, flexibility of configuration for any application, and ultra–portability. It truly showcases the quality that Oelmann equipment is known for.

The LX7 was created with the challenge of modernizing "that grandpa's pager" while maintaining a simple, classic paging interpretation and incorporating the latest communication and signalling technologies.

Features

  • POCSAG, LTE, WiFi, GPS, Man–⁠down, Panic button.
  • Compact, ergonomic, comfortable, European.
  • IP67 rugged and waterproof.
  • Large and bright high-resolution graphic display.
  • RGB backlighting that is static or dependent on the sub-address, message or sender.
  • Display information according to the horizontal or vertical pager position.
  • Scalable font size for better readability.
  • On–⁠screen user interface in any language, user–⁠customizable.
  • Professional high and clear alarm sound level.
  • Optional custom voice announcements and alert sound patterns.
  • Rechargeable Li–⁠Ion battery, replaceable.
  • Magnetic data/charging connector.
  • All types of chargers, from travel set to extended desktop or multi–slot charger/storage rack.
  • Enforced attachment point for strap or chain.
  • Ergonomic and stylish belt holsters and clips, including KlickFast professional.

Options*

POCSAG Pager

  • Cellular LTE
  • WiFi
  • 128 bit BOS PV / AES 256 BOSKRYPT

LTE Pager

  • WiFi

WiFi Pager

  • Cellular LTE

For all pager types

  • GNSS receiver (GPS, GLONASS, Galileo)
  • Man–⁠down / movement detector
  • Emergency Alert (Panic) top button
  • Extension for custom mp3 predefined alerts
  • Custom display Start-Up / Idle State logo

*Factory installation. To be specified when ordering.

Accessories*

  • Belt clip holster, nylon case, nylon case KlickFast system
  • Standard desktop charger
  • Extended desktop charger with connectors:
    – 1x external POCSAG antenna,
    – 1x relay out, message–⁠activated,
    – 1x USB–voltage out, message–⁠activated.
  • I/O cradle/charger with connectors to:
    – The external POCSAG antenna,
    – 2x relay outs / 4 opto–inputs.
  • Multy–charger for 5 pagers
  • Programming kit, desktop or travel version.
  • Spare Li–⁠Ion rechargeable batteries.

*Optional, to be specified when ordering.
Accessories are listed in a Gallery below⇣

Delivery content

  1. LX7 Pager
  2. Li–⁠Ion rechargeable battery
  3. Battery compartment cover
  4. Magnetic data/charging cable USB–A*
LX7 Delivery content

*For compact rapid deployment systems such as the NEN Kit, the pager comes without a cable but with a belt holster.
The operation manual are available for download from the Files below⇣

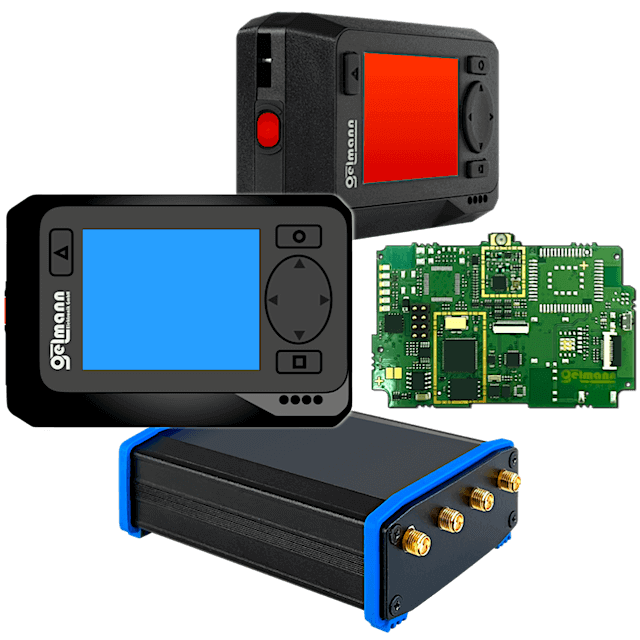

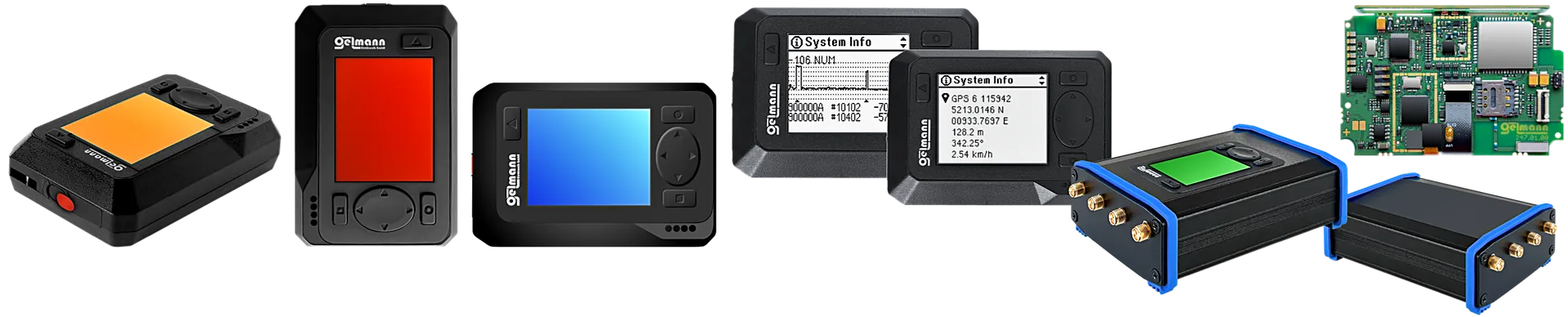

Pager Family, by comms type

POCSAG, LTE, WiFi pagers are produced based on the original LX7 universal platform.

 LX7 Series Pager Family leaflet

LX7 Pager

LX7 POCSAG

The LX7 POCSAG pager is a professional and compact portable device for receiving radio telegrams in POCSAG paging networks.

It receives POCSAG radio telegrams, decodes them, responds to them by displaying the text of the message on the display, activating a sound signal (selectable, including smoothly increasing), vibration and colour backlighting of the display.

  • With on–board LTE and/or WiFi hardware feedback options, the pager can automatically acknowledge receipt of messages*.
  • In the presence of options LTE, WiFi, Alarm button, GPS/GNSS, man-down sensor, the pager becomes a personnel safety device.

*To operate as part of the system and to configure and use additional options, the pager must be programmed using programming kit #247.9800 (portable) or #247.9900 (desktop).

LX7 LTE Pager

LX7 LTE

The LX7 LTE pager is a professional compact portable device for receiving and transmitting SMS and/or IP messages and signalling over GSM / LTE cellular networks.

It receives SMS, responds to it by displaying the text of the message on the display, activating a sound signal (selectable, including smoothly increasing), vibration and colour backlighting of the display.

Upon receipt of a message, the pager automatically acknowledges receipt. And also the user can reply to the message with a response of choice, from pre–programmed text templates.

  • The pager is equipped with a slot for a Nano–SIM (4FF, 12.3mm x 8.8mm), which is located in a secure place in the battery compartment.
  • In the presence of options Alarm button, GPS/GNSS, man–down sensor, the pager becomes a personnel safety device*.

*To configure IP-messaging and use the additional options, the pager must be programmed using programming kit #247.9800 (portable) or #247.9900 (desktop).

LX7 WiFi Pager

LX7 WiFi

The LX7 WiFi pager is a professional compact portable device for receiving and transmitting IP messages and signalling over WiFi IP networks.

It receives instant messages, responds to them by displaying the text of the message on the display, activates an audible alarm (selectable, including softly increasing), vibration and colour display backlighting.

When a message is received, the pager automatically acknowledges receipt of the message. The user can also reply to the message with a response of his choice from the programmed text templates.

In the presence of options Alarm button, LTE, GPS/GNSS, man–down sensor, the pager becomes a personnel safety device*.

*To operate as part of the system and to configure and use additional options, the pager must be programmed using programming kit #247.9800 (portable) or #247.9900 (desktop).

Design options

Besides the standard POCSAG one, the LTE or the WiFi pager as a fully functional complete handheld device, the LX7 Series devices is also available in modular, modem and special versions. This allows the LX7 Series technology to be used in a wide range of applications, including non–standard and customised applications.

 LX7 Design options leaflet

LX7 Pager 247.0x01

LX7 PAGER

Ultra–portable high–performance and highly accurate universal POCSAG–Cellular–WiFi pager with multiple options for any one–, or multi–path paging and personnel security systems.

  • 247.0100 143–158 MHz
  • 247.0200 158–174 MHz
  • 247.1200 442–470 MHz
  • 247.1200 LTE only
  • 247.1100 WiFi only

Data sheets:

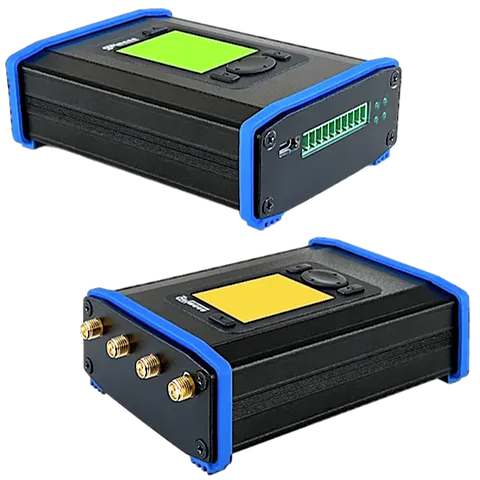

LX7 Modem 247.3x00

LX7 PAGING MODEM

All the features of the LX7 pager but in a hard metal case, for embedding and use in custom and embedded applications.

  • Full–featured POCSAG digital receiver.
  • USB powered.
  • SMA–F antenna connectors.
  • Received messages are decoded and sent to RS232.
  • Options: GSM, WiFi, GPS.

No display version:

  • 247.3100 143–158 MHz
  • 247.3200 158–174 MHz
  • 247.3300 442–470 MHz

Display version:

  • 247.4100 143–158 MHz
  • 247.4200 158–174 MHz
  • 247.4300 442–470 MHz
LX7 Module 247.0x01

LX7 PAGING MODULE

All the features of the LX7 pager, but in an a chassis–less module design, for incorporation into custom or specialty custom solutions and applications.

  • 247.0101 143–158 MHz
  • 247.0201 158–174 MHz
  • 247.0301 442–470 MHz

Options are the same as for LX7 pager.

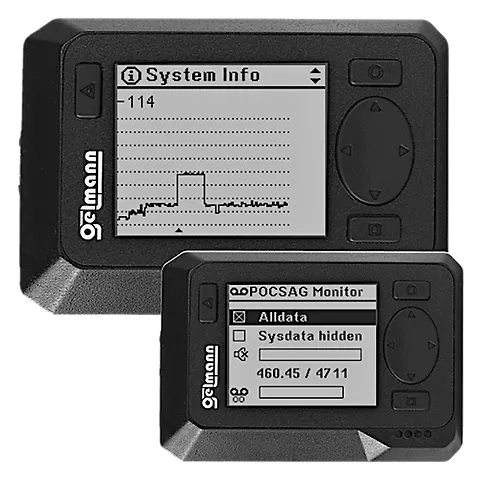

LX7 POCSAG Monitor

LX7 POCSAG MONITOR

A portable high–grade test set for receiving and store raw or decoded POCSAG radio telegrams, with RSSI field strength indication and more.

  • 247.2100 143–158 MHz
  • 247.2200 158–174 MHz
  • 247.2300 442–470 MHz

Options are the same as for LX7 pager.

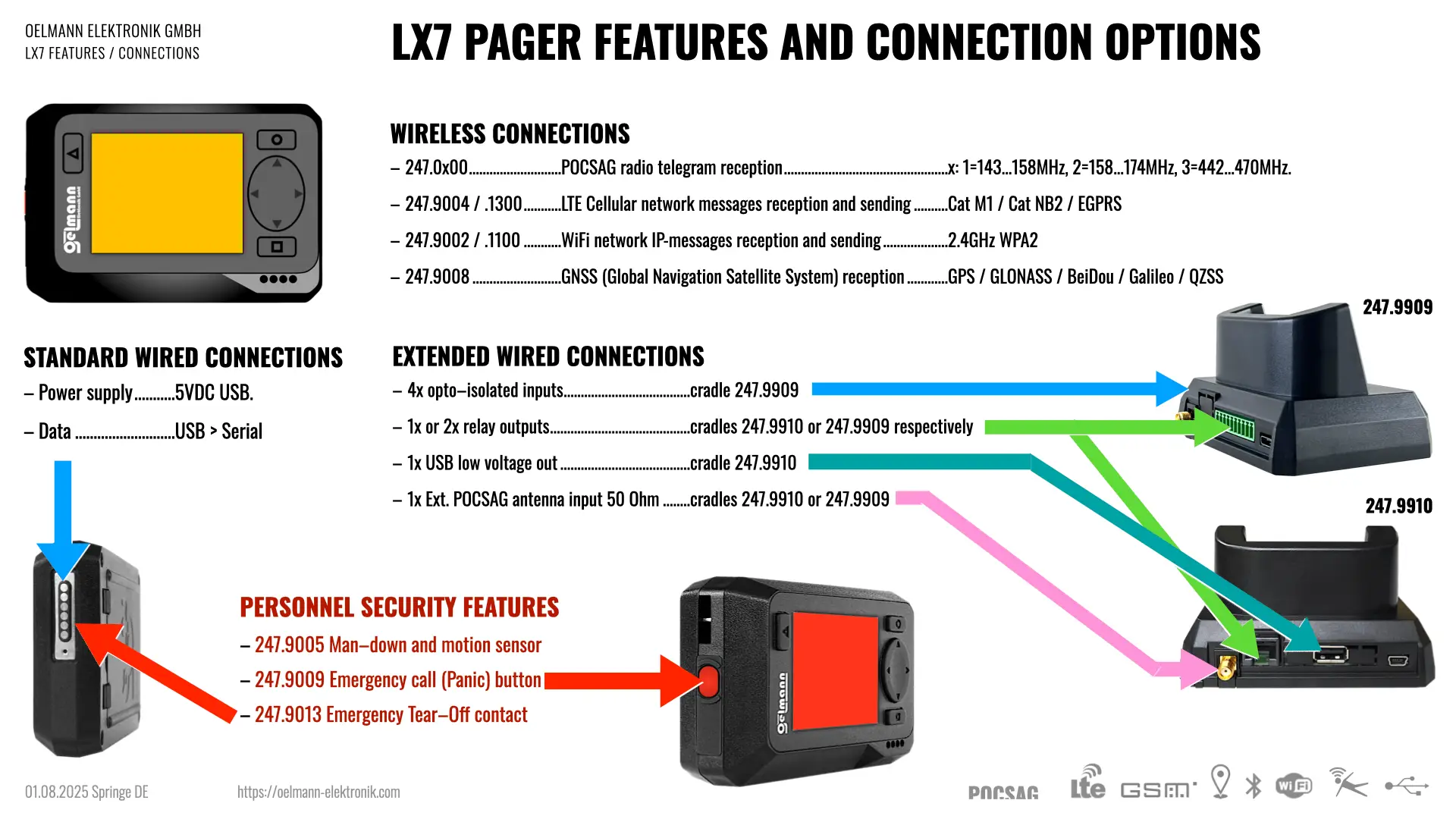

Features and options diagram LX7 Features and options  LX7 Features and options diagram, pdf
Accessories gallery

Everything for carrying and securely fastening pagers, for charging them and connecting them to inputs and outputs, for setting device parameters.

Note: The accessories with pager shown in the photo for illustration are supplied without pager.

227.9820
  • 227.9820
  • Bungee band 25cm.
227.9800
  • 227.9800
  • Chain 35cm.
247.9902
  • 247.9902
  • Belt holster, for pager display side outward.
247.9904
  • 247.9904
  • Belt holster, for either side of the pager outwards.
230.9930
  • 230.9930
  • Weatherproof nylon bag with magnetic closure.
247.9903
  • 247.9903
  • KlickFast Leather case with window.
260.9925
  • 260.9925
  • KlickFast belt dock.
260.9927
  • 260.9927
  • KlickFast belt dock 38mm.
260.9928
  • 260.9928
  • KlickFast belt dock 50mm.
260.9929
  • 260.9929
  • KlickFast leather dock loop.
247.9901
  • 247.9901
  • Wallmount charger USB–A.
247.9905
  • 247.9905
  • Connection charging/data cable USB–A to LX7 magnet connector.
247.9911
  • 247.9911
  • Desktop charger standard, with integrated cable 1m, USB–A.
247.9910
  • 247.9910
  • Desktop charger extended with 1x SMA−F antenna connector, 1x RJ−45 relay out (normal open), 1x USB−A low−power voltage supply out.
247.9910

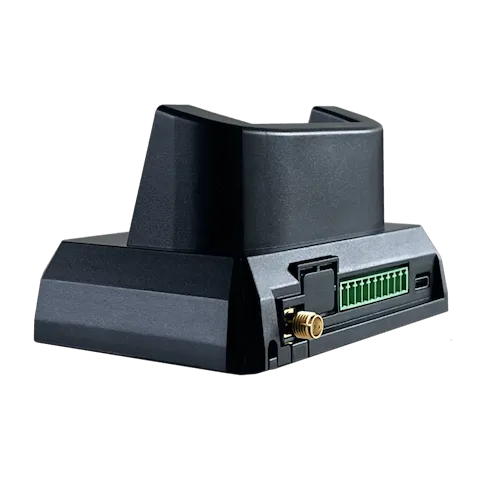

  • 247.9909
  • Desktop IO cradle / charger with 1x SMA−F antenna connector, 2x relay outs, 4x inputs.
247.9912
  • Multi–charger for 5 pagers:
  • 247.9912 12–30VDC, 1x relay out
  • 247.9915 USB–C, no relay out
247.9913
  • 247.9913
  • Multi–charger option 230VAC power supply, for #247.9912 12–30VDC multi–charger (Euro plug–in, w/no power cord).
247.9916
  • 247.9916
  • Wallmount adapter USB–A 15W for 247.9915 USB–C multi–charger.
247.9914
  • 247.9914
  • Multi–charger option Wall–mount bracket set, 2x fixing brackets.

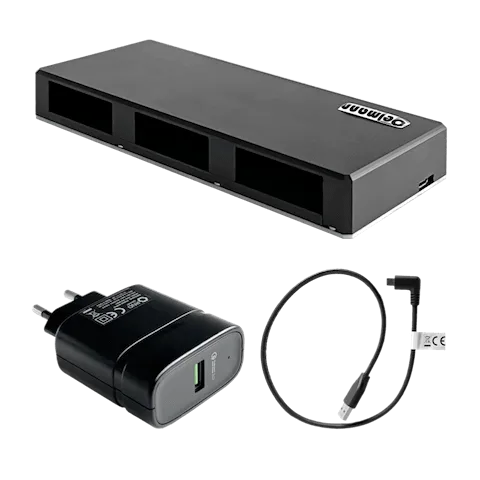

261.0800
  • 261.0800
  • 3x Slot Oelmann battery charger.
261.9000 / 261.9010
  • External antenna for chargers with antenna connector, SMA–M:
  • 261.9000 VHF 41cm
  • 261.9010 UHF 18cm

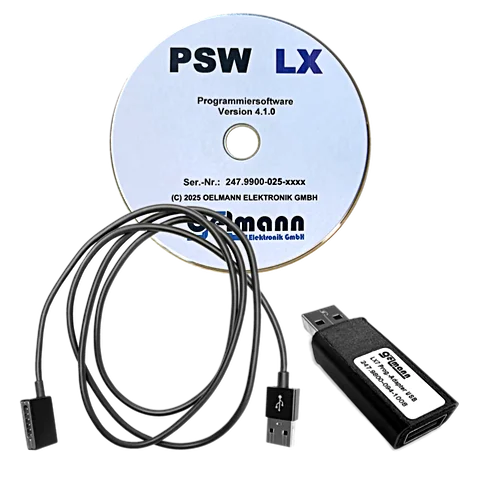

247.9800
  • 247.9800
  • Programming set, travel.
247.9900
  • 247.9900
  • Programming set, desktop.

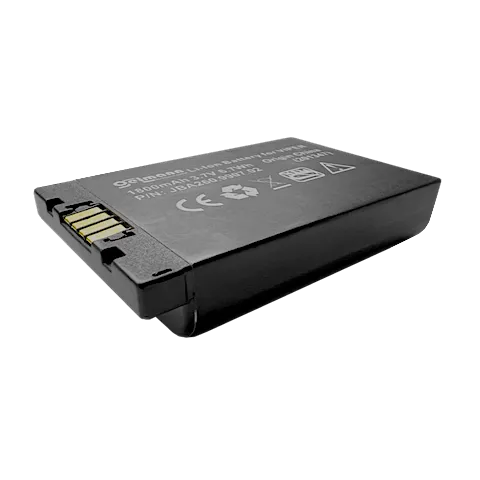

260.9905
  • 260.9905
  • Oelmann standard rechargeable battery.
GGM247.03.01
  • GGM247.03.01
  • Standard battery compartment cover, with 2x battery compartment locks.
Technical data
PARAMETER VALUE NOTES
POCSAG RF–frequency ranges
  • 143–158 MHz
  • 158–174 MHz
  • 442–470 MHz
  • PN 247.0100
  • PN 247.0200
  • PN 247.0300
POCSAG RF–channels Up to 4 per user profile (in scan mode) High–speed and high–sensitive POCSAG digital receiver for precise receiving of signalling and messages, 4–⁠channels in scan mode, VHF or UHF, 256 RICs with 4 sub–addresses each, 64 user profiles.
POCSAG RF–sensitivity, body-worn 1,9 / 2,4 / 3,0 μV/m 512/1200/2400 Baud respectively
POCSAG Baud Rate 512 / 1200 / 2400 Baud
POCSAG addressing
  • 256 RICs with 4 sub–addresses each, frame independent
  • RIC-alias as 32 characters name with assigned alert sound pattern, programmable
User profiles 64 User/additional, with user assigned RICs
Alert types Loud audible alert / priority alert / silent / vibro mode Customized via user menu / programmable
Alert sound volume level >90 dB(A) at a distance of 30cm The discrete alarm first with medium volume, then loud (programmable)
Incoming messages
  • Tone–only / numeric / alphanumeric
  • Up to 100 messages of any type
 Stored in no–-volatile memory
Display
  • Monochrome LCD, high resolution
  • RGB color backlight
  • Wide viewing angles, fast response time, sunlight readability
  • 3 characters sizes
  • >200 characters per page
 The display information can be rotated depending on the operating position of the device. The position of the displayed information can be switched via the menu or via a user–programmable shortcut button.
Operational buttons
  • Soft precise toggling with tactile response.
  • Durable silky plastic.
 Configurable for right–handed or left–handed users.
Battery Li–Ion, rechargeable Oelmann standard battery
Measurements
  • 80x54x18 mm
  • 80 g with battery
Environmental
  • –10...+55°C
  • IP67
BD BOS TR BOS DME II 58/19 POCSAG
Options, to be ordered separately
POCSAG Encryption
  • 128 bit (BOS PV)
  • AES 256 bit (BOSKRYPT)
 Support from the radio transmission infrastructure is required.
Cellular LTE
  • SMS receiving and sending
  • GPRS/LTE IP–sending
  • LTE FDD: B1, B2, B3, B4, B5, B8, B12, B13, B14 ,B18 , B19, B20, B25, B26, B27, B28, B66, B71, B85
  • EGPRS: 850/900/1800/1900MHz
  • 4FF Nano–SIM 12.3mm x 8.8mm
  • PN #247.1200 is for the pure cellular pager
  • PN #247.9004 is for the cellular option to POCSAG or WiFi pager
WiFi 2.4GHz WPA2
  • DHCP or Static IP address
  • UDP messaging
  • PN #247.1100 is for the pure WiFi pager
  • PN #247.9002 is for the WiFi option to POCSAG or Cellular pager
Localization receiver GNSS receiver (GPS, GLONASS, Galileo)
Custom sonic alert patterns or voice announcements Hardware sound module and additions Having this hardware option, the user can supplement the standard sound signal set of the device with any custom mp3 sounds, that can be:
  • assigned to the address from which messages are received.
  • assigned to the message text itself.
  • as voice announcements of the device itself (battery warning, on/off, etc.)
